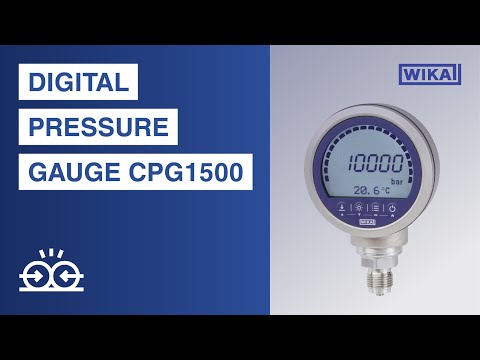

The model CPG1500 precision digital pressure gauge adopts the concept of an analogue pressure gauge and at the same time works with the precision of a digital calibration instrument. The instrument thus combines the accuracy of digital measurement technology with the simplicity of an analogue measuring instrument and features impressive performance and ease of use.
The CPG1500 offers an accuracy of 0.1 % FS, 0.05 % FS or 0.025 % FS and is temperature-compensated in the range of -10 … +50 °C [14 … 122 °F]. Measurements can be displayed in any of 26 pressure and 5 level units, or in custom units to avoid intricate conversions.
Special features
– Measuring ranges between 0 … 10,000 bar [0 … 150,000 psi] and also vacuum and absolute pressure measuring ranges are available
– Accuracy: up to 0.025 % (incl. calibration certificate)
– Intrinsically safe version
– Logger function with up to 50 measured values per second
– Communication with WIKA-Cal software via Bluetooth®
